    Long Range UAV Detection Radar , Drone Surveillance Radar

    Counter Terrorism Equipment UAV detection radar drone detection radar

    1.Product function and use

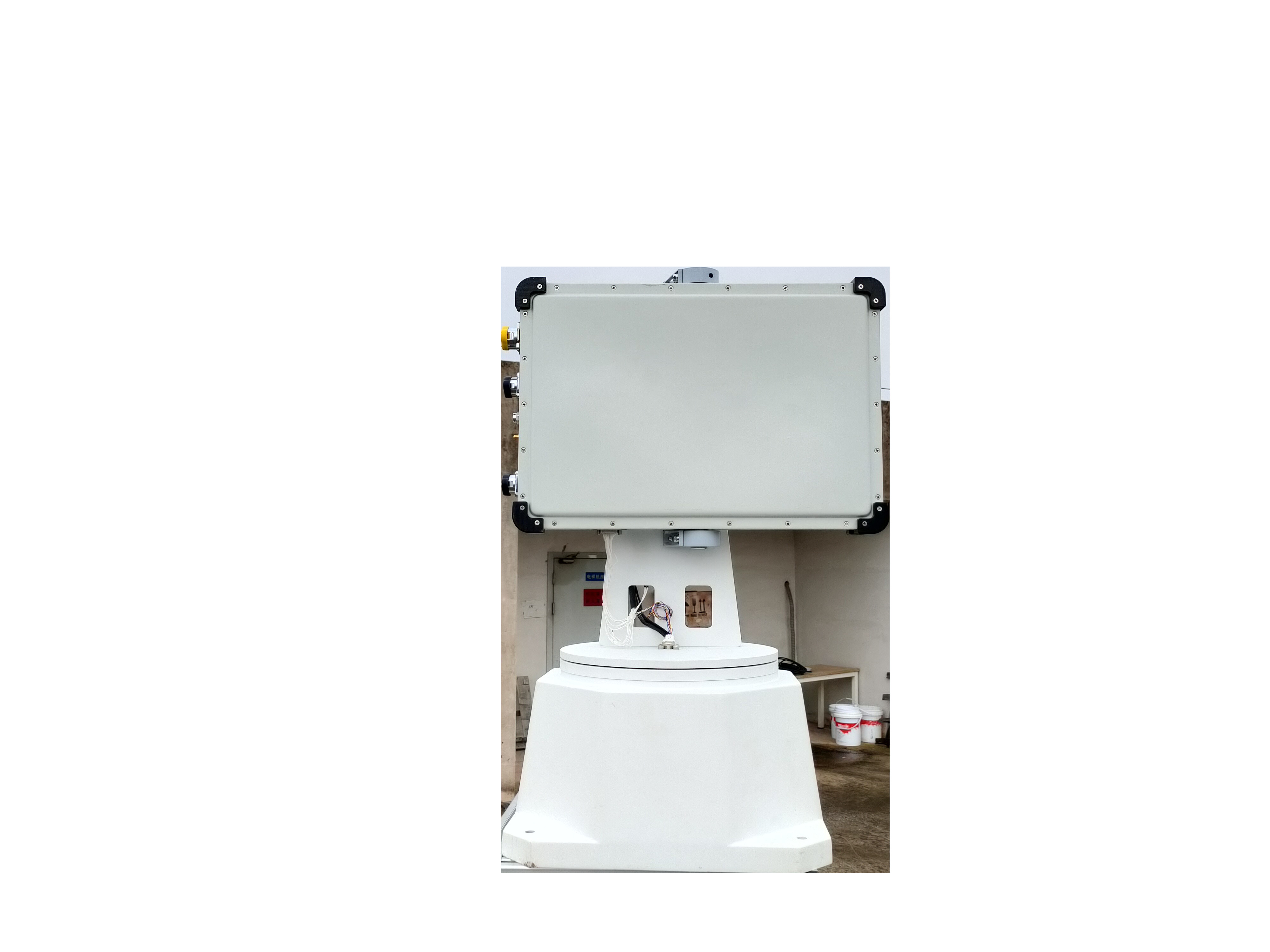

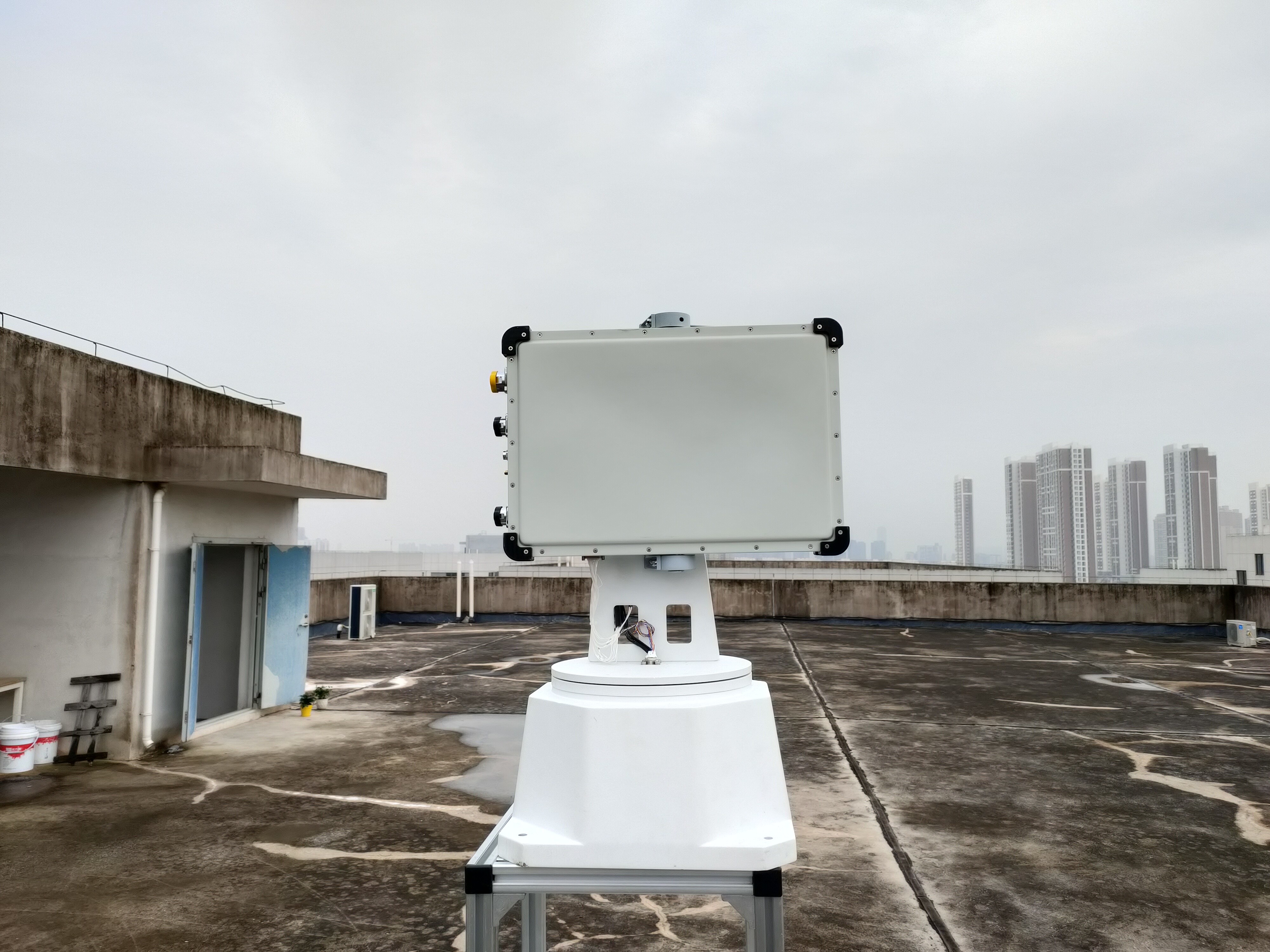

    SR223 radar is mainly composed of 1 radar array, 1 integrated control box and 1 turntable. It is used for detection, alert and target indication of micro/small civilian drones in key areas such as prisons, exhibitions, and military bases. The trajectory information such as the position, distance, altitude and speed of the target is given.


    2. Main product specifications


    ItemPerformance parameters
    Work systemPhased array system (azimuth machine scan + pitch phase scan)
    Operating modePulse Doppler
    Working frequencyC band
    Maximum detection distance≥ 1.2km
    Minimum detection distance≤ 100m
    Azimuth coverage0°~360°
    Elevation coverage0°~30°
    Distance accuracy≤ 10m
    Bearing accuracy≤ 1.0°
    Pitch accuracy≤ 1.0°
    Data rate≥0.2 times/s
    Peak power≥ 4W
    Weight≤ 30kg
    System power supplyAC220V/80W
    interfaceRJ45 / 1 channel 100M Ethernet (UDP protocol)
    working environment

    Working temperature: -40℃~55℃;

    Storage temperature: -45℃~65℃;

    With measures to prevent rain, dust and sand;

    With measures such as moisture-proof, salt-fog and mildew-proof

    Note:

    1) Detection distance conditions: UAVs with a radial velocity of not less than 0.5m/s, false alarm probability 10-6, detection probability 0.8;

    2) The typical target of the UAV is DJI "Elf 3".
