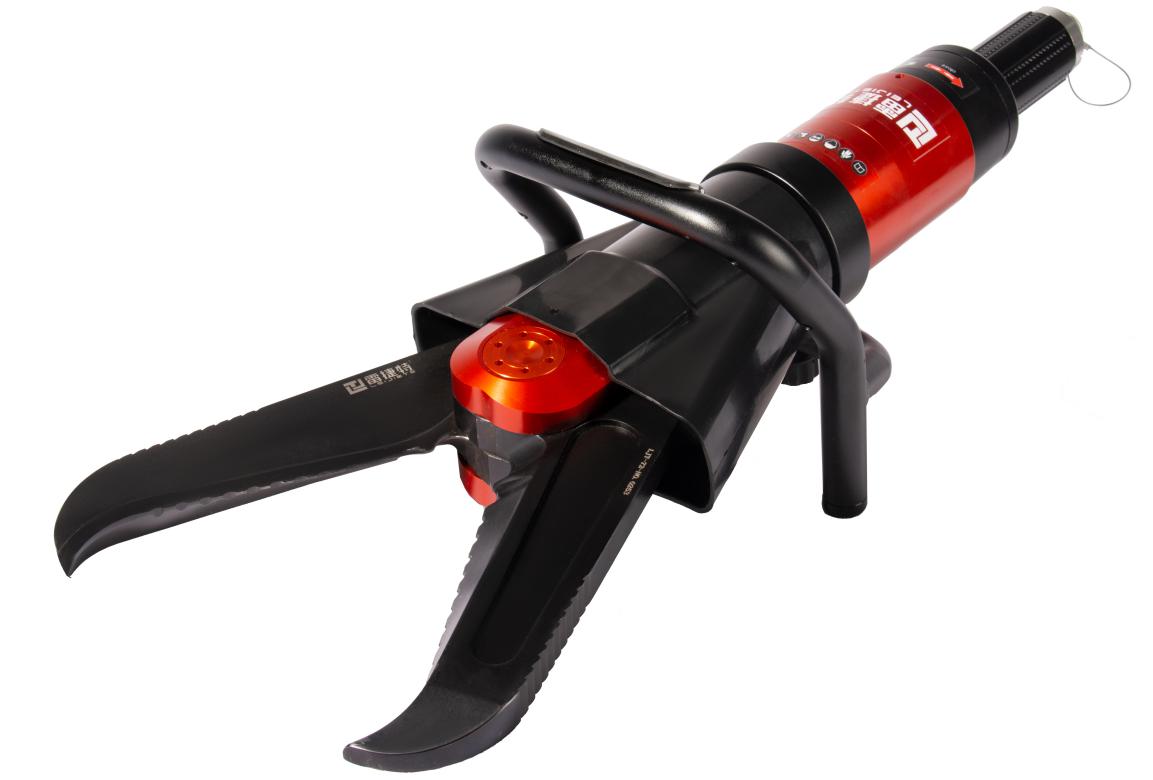

GYJQ-35(16)/320

Features:

1. No tail tube, single tube and single interface design.

2. The interface is a flat-head shaft single interface design, which is easy to clean and can be operated under pressure.

3. Plastic non-slip switch control, no sticking or sticking, making the operation more precise.

4. The handle is equipped with an integrated LED lighting system, which can provide lasting lighting for rescuers.

5. The design of 360°rotating manipulator handle can carry out multi-angle cutting operations and is easy to operate.

6. The center bolt is a flat mechanical gear structure design, which can enter a narrower space for shearing rescue operations.

7. The two-way hydraulic lock is used inside, and the tool has the function of self-locking and pressure keeping after the pressure is released.

8. Olecranon cutter head design, larger opening distance, can easily wrap car ABC column and perform centralized cutting operations.

9. The cutting edges are designed with double blades, so there is no splash during cutting. Ensure the safety of users.

10. It has the advantages of light weight, good flexibility, strong functionality, balanced body, labor saving, and easy operation.

11. Tool packaging is opened with high-strength foam. Lightweight and durable. Anti-stepping pressure, anti-rain, anti-corrosion.

Parameter:

Rated working pressure: ≥72MPa

Shearing force: ≥600KN

Opening distance: 320mm

Shearing capacity (Q235 material): ф35mm

Steel plate thickness (Q235 material): 16mm

No-load closing and opening: 8-10s

Weight ≤15kg

Dimensions (length*width*height):

780*230*230mm
