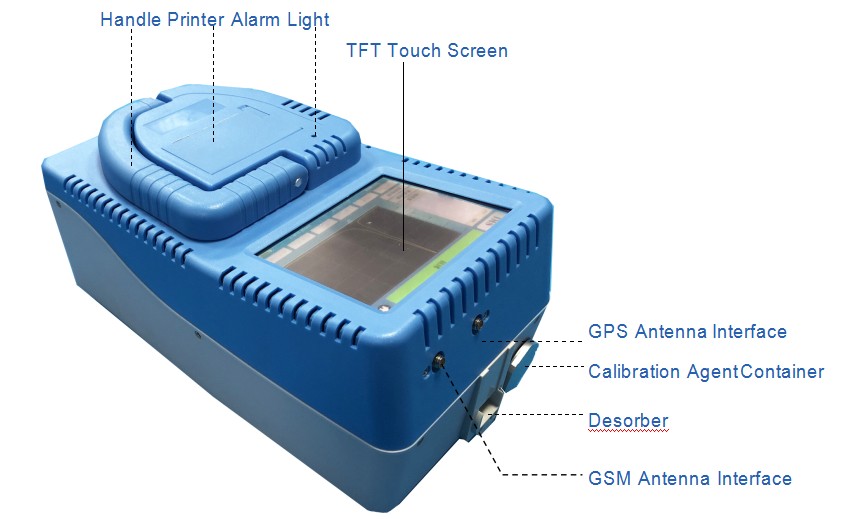

Product introduction:

TS-300 upgraded version of Portable Explosives Narcotics Detector is a new generation of portable explosives and narcoticsdetectors . It adopts high-resolution ion mobility spectroscopy technology, with fast detection speed and high precision. Simple operation, low false alarm rate, easy to distinguish dangerous types, low power consumption, small size, light weight, easy to carry, easy to maintain, use environment and strong adaptability, can accurately detect black powder and international All explosives and drugs prescribed by ICAO.

Product advantages:

Accurate detection: using high-resolution ion mobility spectroscopy technology, in actual work, it is not necessary to align the dangerous goods in the package, only need to wipe the inspection package with test paper to detect whether it carries dangerous goods, convenient operation and accurate detection;

One machine dual mode: using positive and negative dual mode, one machine can detect explosives and drugs;

One-button detection: one-button detection, easy to operate;

Accurate identification: The type of the dangerous goods can be accurately identified, and the name of the dangerous goods to be inspected can be reported;

Extreme speed analysis: detection and analysis speed is faster than similar products, results within 3 seconds;

Automatic calibration: With automatic calibration function, it can adapt to various environmental changes in the outside world;

Automatic cleaning: self-cleaning function, which can be cleaned quickly and conveniently after over-detection;

Automatic diagnosis: It has automatic fault diagnosis function, and can promptly issue a warning. The user can judge whether the instrument can operate normally according to the warning;

Real-time update: Open database, sample library information can be upgraded at any time;Full color screen: equipped with 5.6-inch TFT color touch screen;

Real-time storage: with real-time data storage, retrieval, export and other functions, the storage capacity is not less than 1 million;

Real-time positioning: With GPS positioning function, it can tell the user where the instrument is located in real time;

Remote monitoring: remote status monitoring, result viewing, fault diagnosis and other functions can be realized through the network;

Automatic printing: with printing function, users can freely choose to print content;

Cheap consumables: molecular sieve-based desiccant, low cost, easy to replace;

Sturdy packaging: safety box with lining, carton packaging;

Technical indicators:

Basic parameters

Weight: less than 4.0 kg

Dimensions :290mm (L) × 170mm (W) × 145mm (H)

Battery working time: > 3 hours, standby time > 12 hours

Power / Adapter Adapter: AC110V/220V AC, 50-60Hz Output 19.5V

Charger: AC110V/220V AC, 50-60Hz

Performance parameter

Explosables TNT, Hessian, Taian, Nitroglycerin, Black Powder, Dinitrotoluene, Tetra, Okto, Jina, Entropic Explosives TATP, Hexamethylol HMTD, C4, Sam Ting and other military, civilian and earth explosives, etc., and can add new samples as needed.

It can detect narcotics such as cocaine hydrochloride, heroin hydrochloride, tetrahydrocannabinol, methamphetamine (ice), ketamine hydrochloride (K powder), morphine hydrochloride, papaverine, ecstasy, dulantin, etc., and can be used as needed. Add a new sample.

Sensitivity Pg level

Analysis time ≤ 3 seconds

Start time < 5min

False alarm rate ≤ 1%

The detection rate ≥ 99%

Alarm recovery time < 15 s

System functions

Language :Chinese and English

Database: Open database, ready to update

Sampling method :Trace particle adsorption sampling, test paper wiping sampling

Detecting type can achieve full detection of drugs and explosives detection

Mixture detection enables the selection of principal component detection and mixture component detection

Alarm mode With sound, light, character light alarm display, alarm mode selection switch, optional sound and light alarm, or hidden alarm mode without causing panic

Environmental parameters

Working / storage temperature: -20°C ~ 60 °C

Work / storage humidity <95%

Working pressure: 60kPa~106kPa
