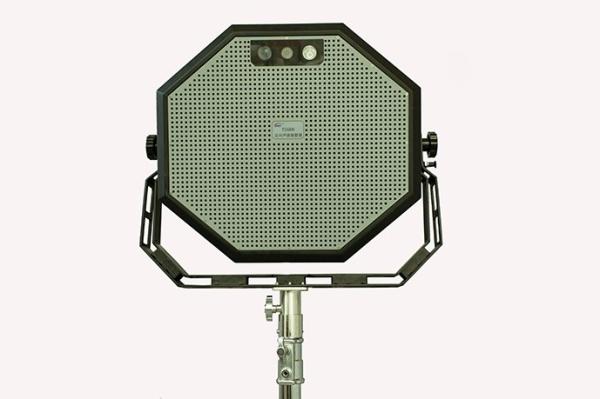

1. Introduction

Portable sound casual drive device can be non-contact, non-lethal under the premise of comprehensive utilization of strong sound, light or directional warnings to disperse the goal or groups.It can release a strong noise and dazzling glare to make it difficult stay at the front without any protective measures .At the same time it will not cause permanent damage to the human body so it’s used to deal with mass incidents and effectively dispersing illegal vessels; It has video display acquisition function which could real-time observe on-site evidence; It can also be used to persuade people for unlawful assembly, warning to disperse to disperse birds in the airport to mount to ship to combat piracy,distance propaganda and warning.

1. product characteristics

1. Human nature law enforcement in the form of non-contact, non-lethal to disperse or warn crowd avoiding escalation.

2. High sound intensity which can effectively disperse the target within 0-200 meters, the maximum warning distance up to 1000 meters.

3. High light intensity, which can effectively disperse the target within 0-50 meters, the maximum warning range of up to 200 meters.

4. High directivity effectively locking the target area.

5.To persuade and alert, integration propaganda function and preset alarm audio playback.

6, ultra-long observation, 360 times zoom camera, the effective observation distance 0-200 meters, the effective detection range 0-1000 meters.

1. Portable use equipped with portable platform and power source to start work fastly.

Main parameters (★ for key parameters)

set to disperse, dazzling, propaganda, camera, lighting in one

1. Weight: ≤35KG (no attachments);
2. Size: 605 * 505 * 330mm;
3. Frequency range: 500 ~ 5000Hz;
4. Operating temperature: -30 ~ + 60 ℃;
5. Relative humidity: 0 to 95%;
6. Audio input: SD memory card and special propaganda apparatus;
7. Maximum power volume status: 150 db @ 1m;Usually state: 120 db @ 1m;Operating position when top volume below the front area of 40 db, range 1 km, no less than 100 db @ 100 m;
8. volume attenuation: <1.9%THD@2000Hz;
9. beam width: ± 15 ° @ 2000Hz;
10. Power: 800w (Peak 1200w);
11. Camera pixels: 12 million;
12. Working time: ≥3h;
13. Host 1 set

Remote control 1 set
