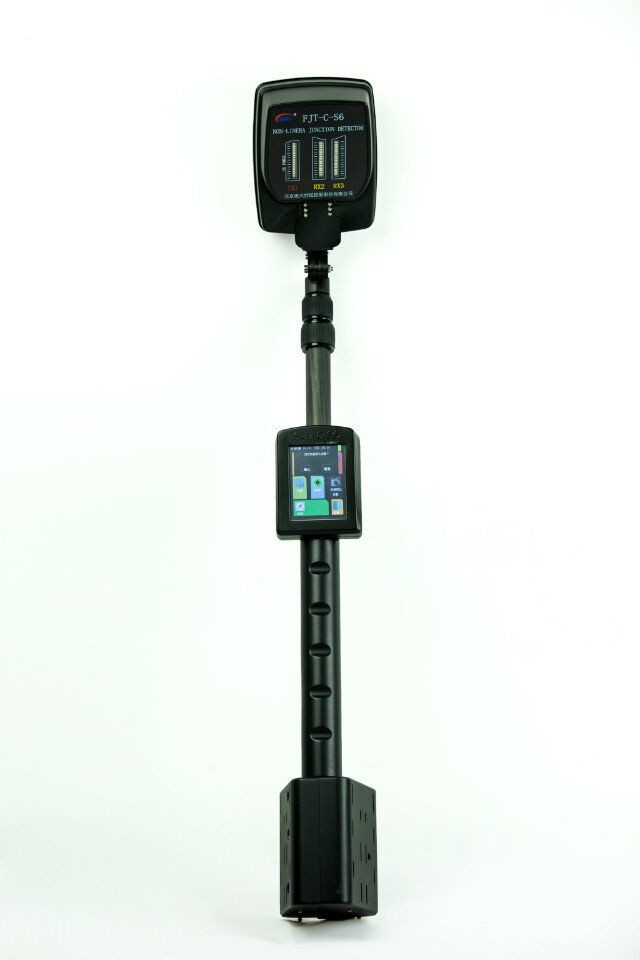

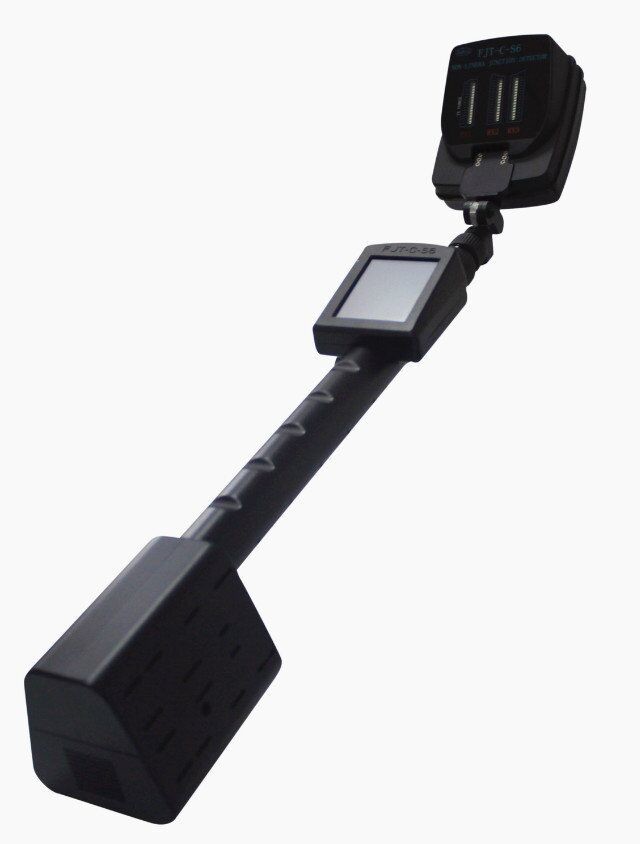

Non-Linear Junction detector FJT-C-S6 with good quality and favorable price

1.Overview

FJT-C-S6 non-linear junction detector is used for search and location of electronic devices both in active and switch-off state. The detector operation is based on the property of semiconductor components to generate a harmonics response when radiated by a microwave probing signal.

FJT-C-S6 non-linear junction detector can automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to the maximum extent.

FJT-C-S6 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.

2.Specification

1. Transmitter range:2400.5MHz -- 2485.5MHz

2. Signal form: Pulse duty cycle of 5%

3. Pulse width: 500us

4. Transmitter power:3.7W(peak), power error: ± 15%.

5. Second harmonic receiver frequency: 4801MHz -- 4971MHz

6. Second harmonic receiver sensitivity:-140dBm

7. Third harmonic receiver frequency: 7201.5MHz -- 7456.5MHz

8. Third harmonic receiver sensitivity: -140dBm

10. Working time: more than 3hours

11.Charge time:2 hours

12. Weight:About 1700g

13. Size:680*130*118mm

Extended size:1400x130x118mm
