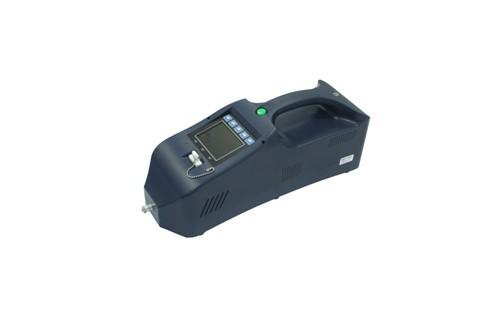

Counter Terrorism Equipment/ Portable explosive drug detector TS-200

wide-range applications; capable of monitoring all kinds of common explosives, drugs and precursor chemical products, etc.
◆ High sensitivity and rapiddetection speed
◆ Automatic sampling and detection, intelligent sensing of the sampling process
◆ Database accessibility, free toadd new data anytime required
◆ Convenientdata output interface for handling data and printing
◆ Anti-pollutant sampling and automatic self-cleaning
◆ Efficient and long-term gas purification system
◆ Low expense of supplies; easy operation and maintenances


Main Technological Specifications
◇ Applied Technology: Ion Mobility Spectrometry (IMS)
◇Detectable Explosives: all kinds of military, civil and homemade explosives such as TNT, RDX, HMX, pentaerythrite tetranitrate (PETN), nitroglycerin, ammonium nitrate, gunpowder, plastic bonded explosives(C3,C4), picric acid,tetryl etc. Drugs: cocaine, heroin, hemp, crystal meth, morphine etc.
◇Method of Sampling:use a test paper to wipe over the sample
◇ Sensitivity: nanogram
◇ Warning Method: sound and a screen display of information
◇ Duration for Analysis: ≤4seconds
◇ Resolution:＞20(for TNT)
◇ Detectable Rate: ≥99%
◇ False Alarm Rate: ≤1%
◇ Warming-up time: ≤15 minutes
◇ Environmental requirements:working at temperature of -10~55℃ and at relative humidity of ≤95%
◇ Battery Parameters: lithium polymer batteries of 24V(DC) and 8.7AHbr

◇ Battery working time: At least 6 hours
◇ Product External Dimensions: 432mm(L)×135mm(W)×178mm(H)
◇ Product Weight: 3.95Kg
